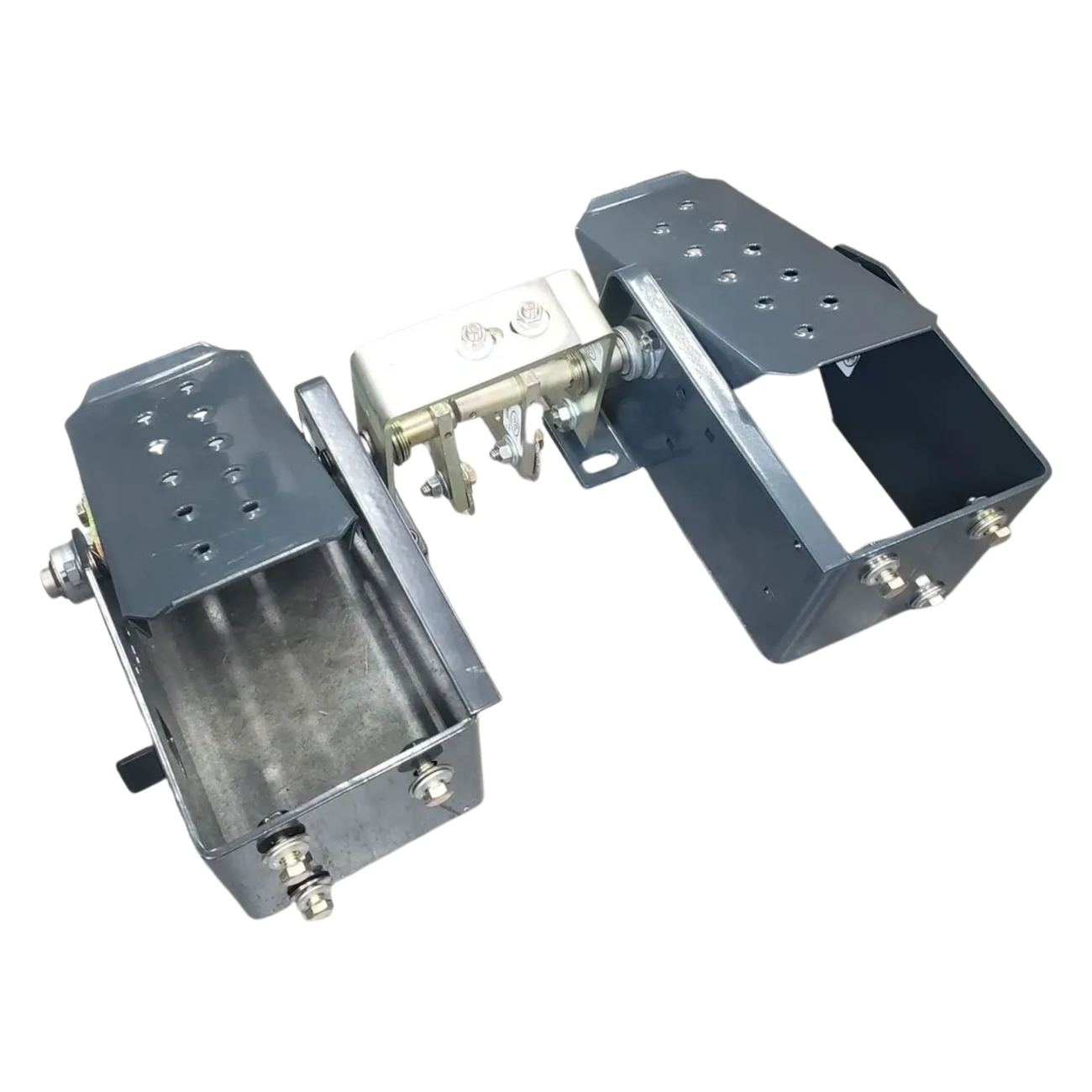

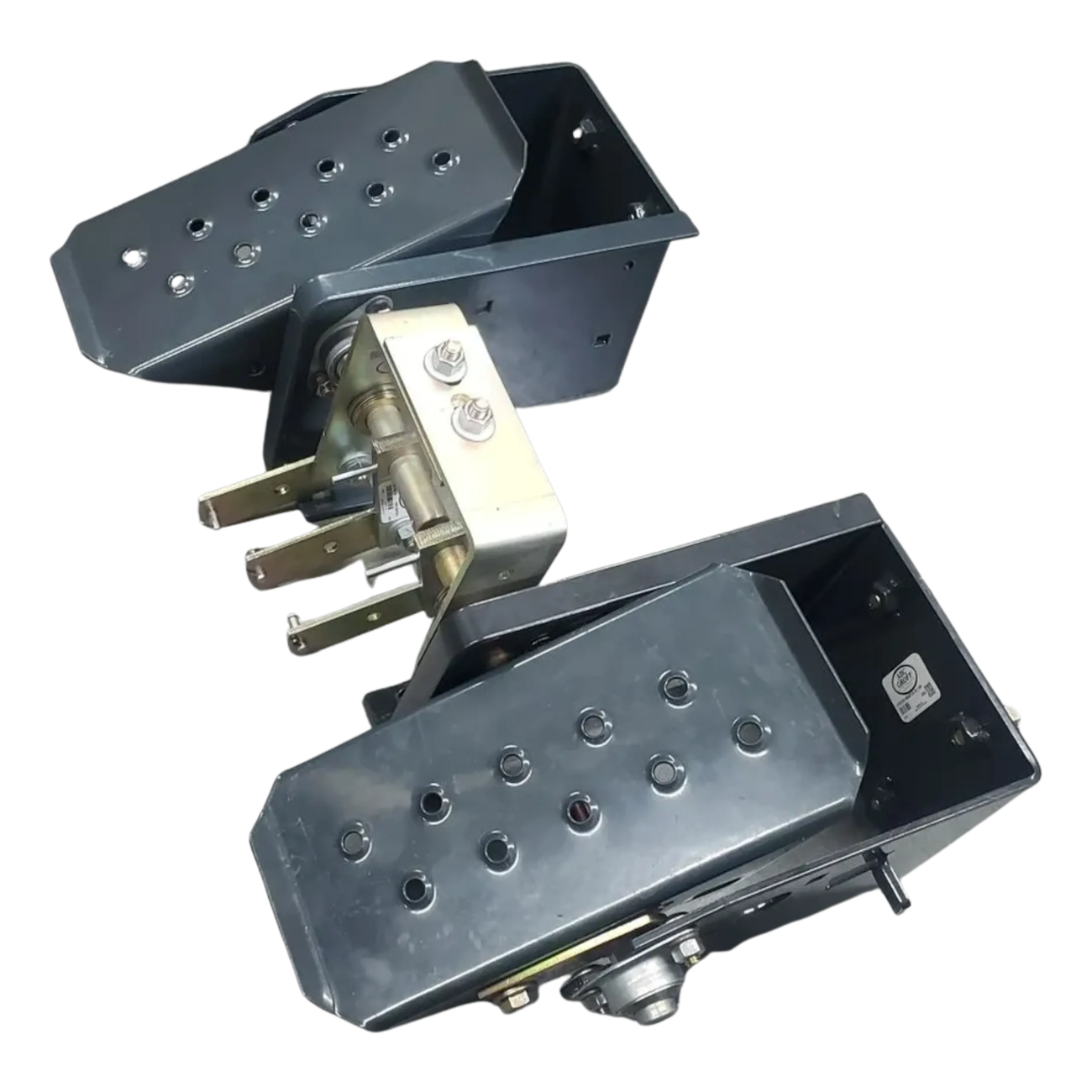

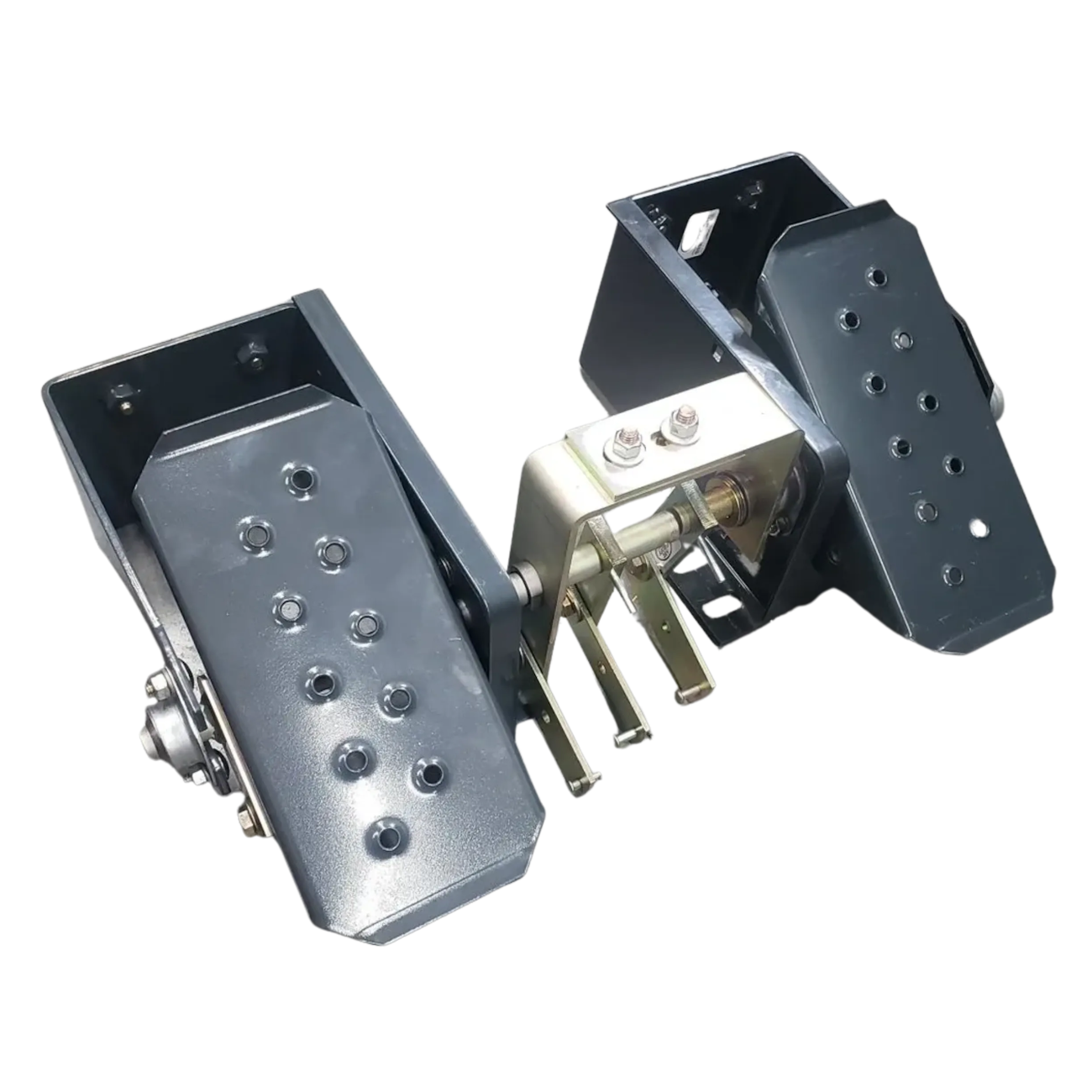

Complete Foot Control Pedal Assembly

Part # PEDALSLX565-LS190

Aftermarket complete right hand & left hand foot control pedal assembly. Includes brackets (86639934 & 86639936), shafts (9622465 & 87039493), supports (86506568 & 87376949), pedals (9622462), bearings (86567251), arms (9615879), links (9622464) and attaching hardware but must reuse 3 spacers # 641419 that links for spools pivot on.

For New Holland Skid Steer Loaders – L565, LX565, LX665, L865, LX865, LX885, LX985, LS160, LS170, LS180, LS190

*Partial assembled *Must install control arms on shaft and put links on arms using old spacer # 641419. Then adjust.

*Powder coated & zinc plated
